Vellum Dress
Dress made and simulated in Houdini using Vellum tools.
Overview
For this project, I explored Houdini’s Vellum tools for cloth to model, drape, and simulate a dress with a fitted top, frilled sleeves, and a bottom and top layer.
Top

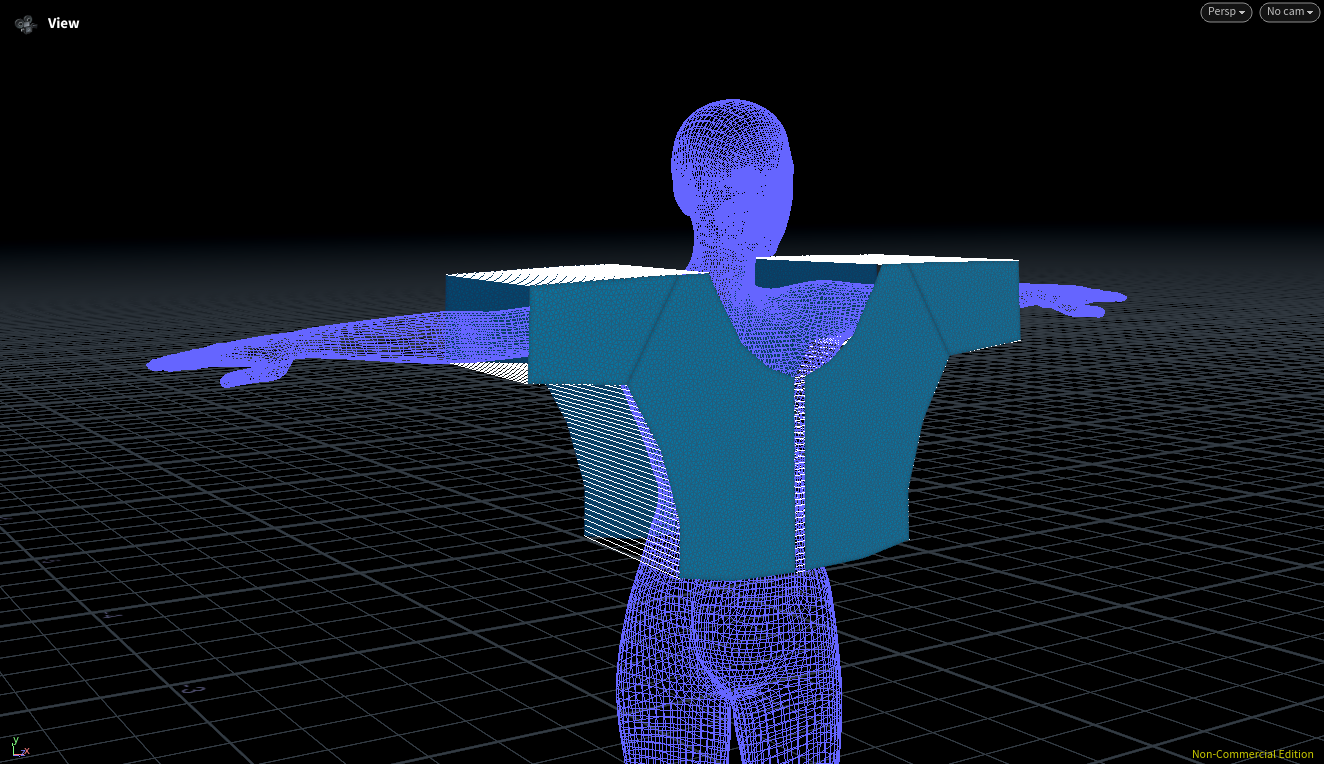

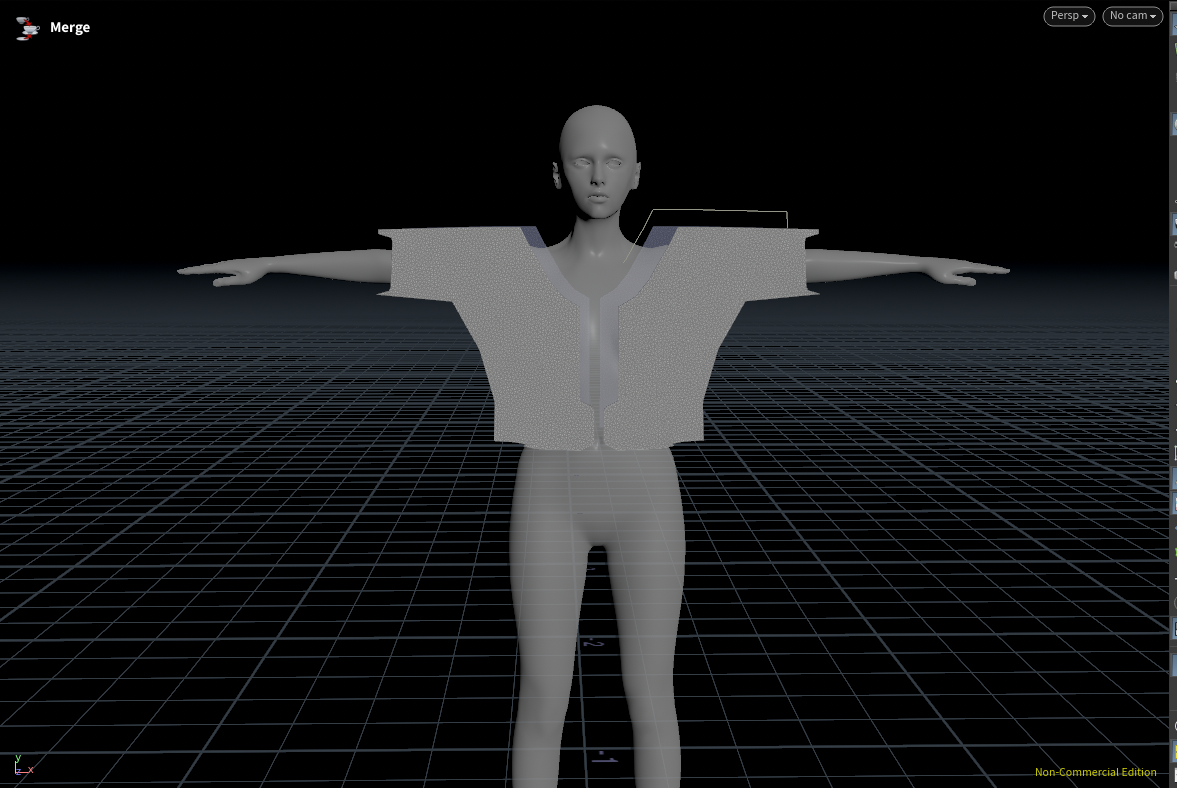

The top was built from creating planar patches from a drawn input curve. During paneling, I found it helpful to be able to name the seams, which can be referenced later to weld pieces together in the Vellum drape.
In the cloth constraints, I use high stretch and bend stiffness to preserve the overall form. I also have high compression stiffness to retain more fine detail from the wrinkles and folds. I found that if the mesh is able to contract too much, it appears more rubbery instead of cloth-like. When the besh is forced to bend instead of compress, it produces the nice fold detail we’d expect to see.

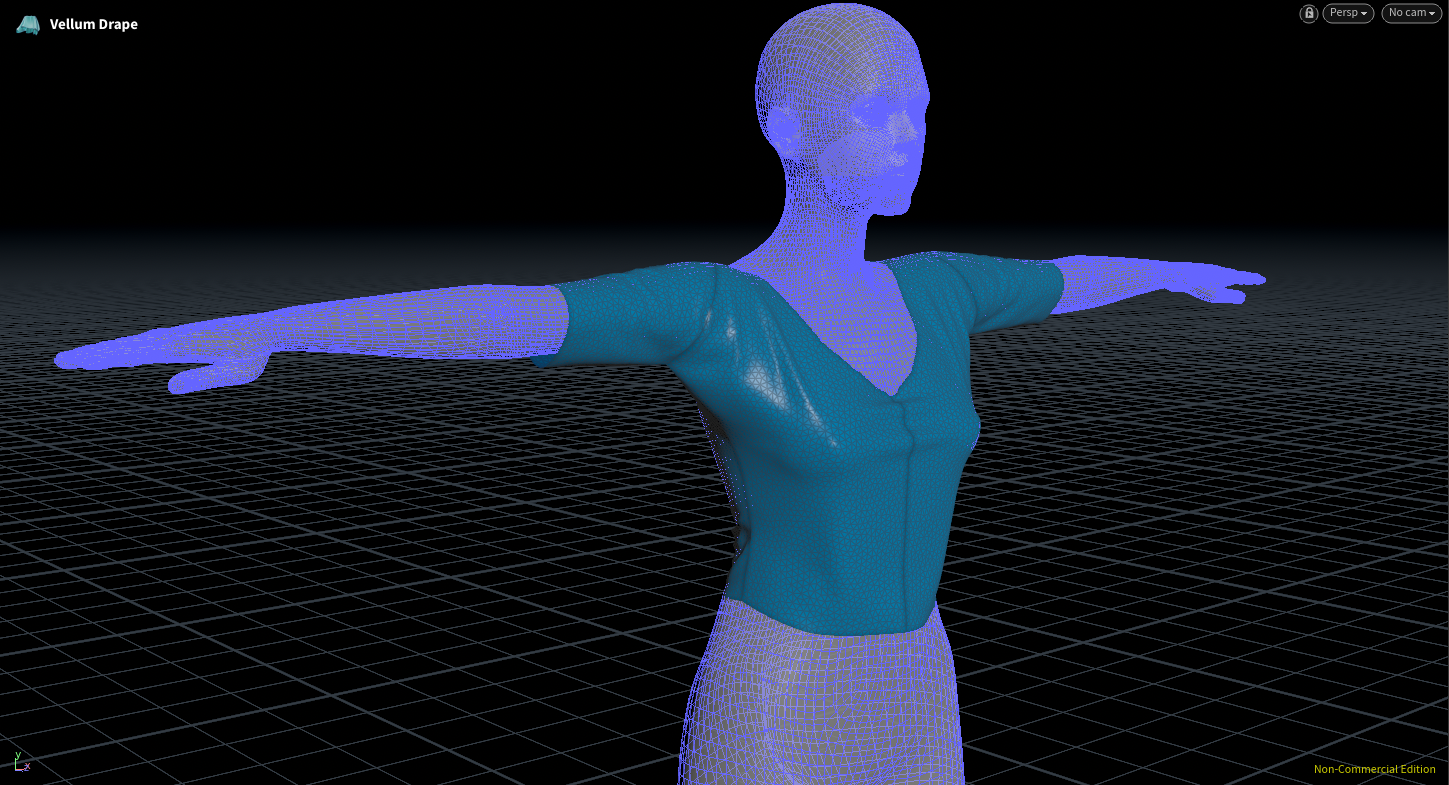

To keep the top more static for the rest of the drape set up, I use a Pin to Animation constraint to pin the top to itself. Since the pieces of the dress are done in an additive manner, this freezes the pieces that are already draped and welded, so that they no longer affect downstream simulations.
It was also good idea to clean up attributes, with the exception of color and vm_cuspangle (which ensures consistent normal calculation to avoid unwanted faceting or creasing).
Frills

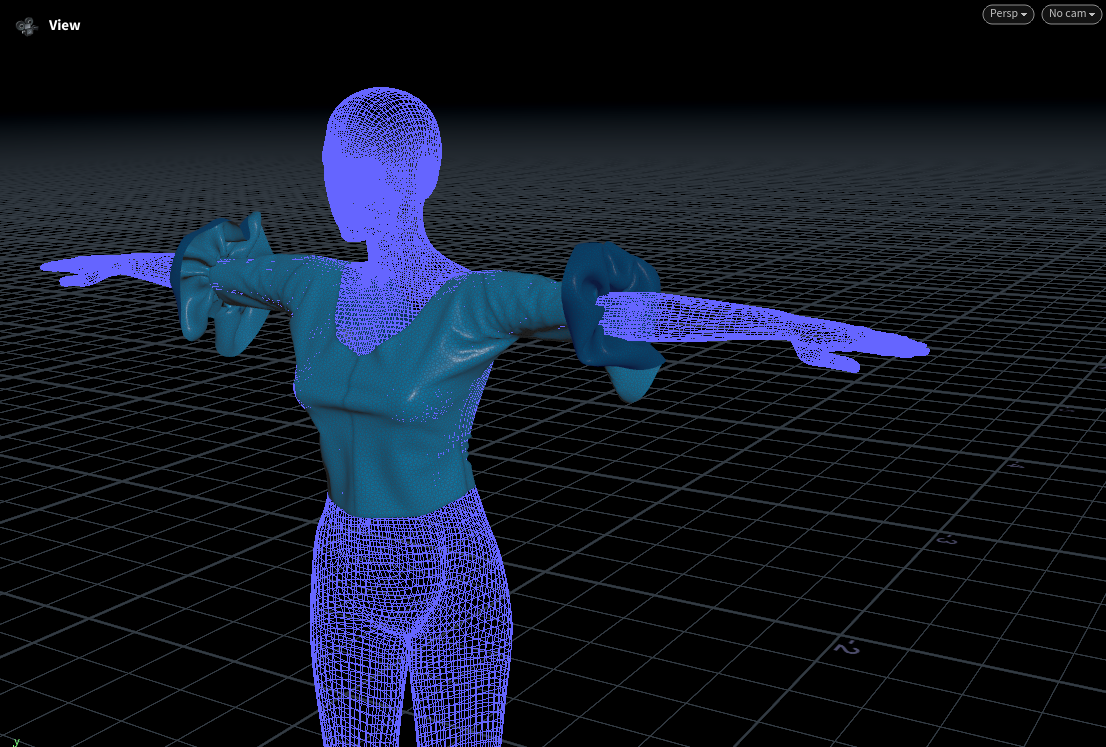

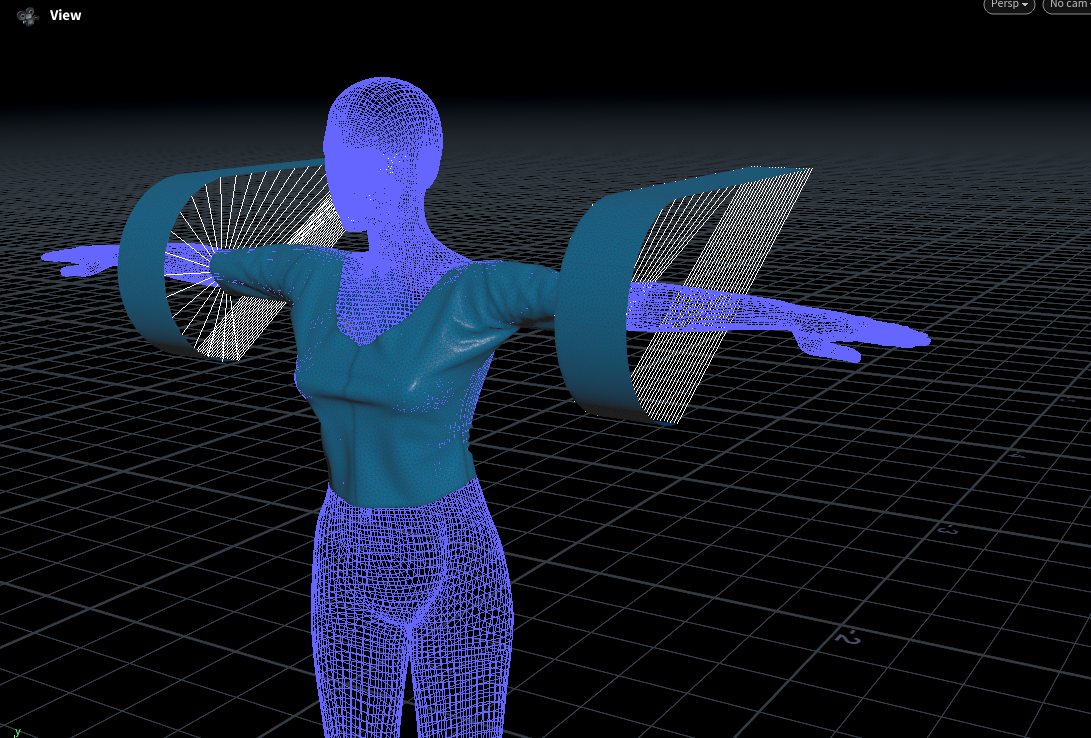

To create frills, I create constraints between curved panels and the sleeves of the top.
One issue is that the size of the primitives on the edge of the frill geometry are much larger than the primitives along the border of the sleeve. Trying to constrain them results in jagged edges and primitives.

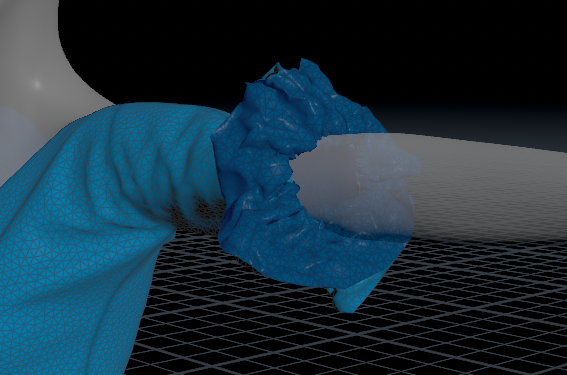

By using a distance constraint and lowering the rest length scale for the primitives along the edges of the frill, I’m able to effectively shrink them and create a smoother transition.
Dress

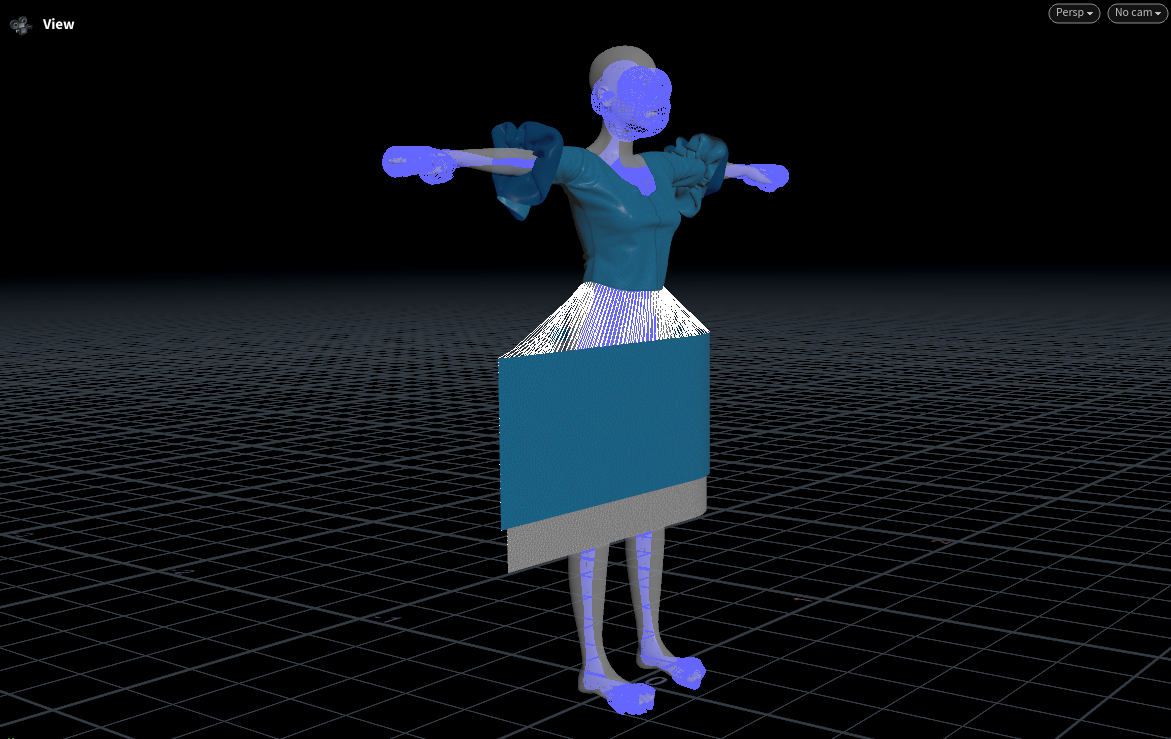

I use two layers of fabric to create a top and bottom layer. The bottom layer has some more stiffness so it won’t distort as much, while the top layer is more free-flowing.
To prevent the cloth from intersecting with the hips of the model itself from the initial pose, I found that I could use “Inflate Collisions” to start the collision geometry smaller and inflate it over time.

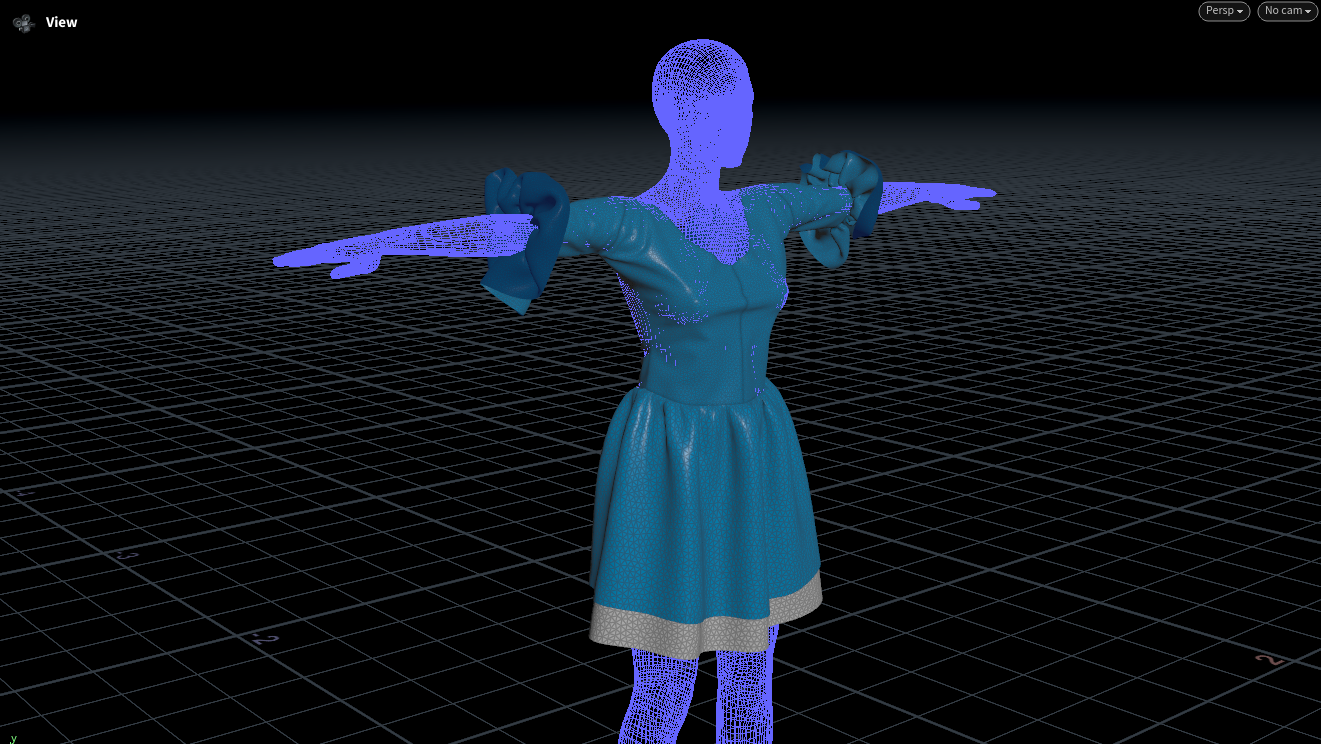

And here is the final dress!
When I take the final drape in a Vellum solver for simulation, the most important parts are to attach the neckline and sleeves to the body of the model so that they stay in place.
